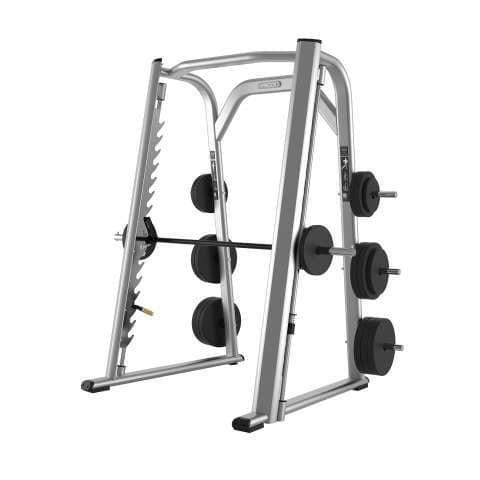

Precor Discovery Series Smith Machine (DPL0802)





The bold, sleek design of the Discovery™ Series Smith Machine features high head clearance and a clean, walk-through design. The 11-degree angle of the Smith Machine and innovative bar design produces a smooth, natural feel and an exceptional user experience.

  • Clean, bold walk through design
  • 11 degree frame angle
  • Low start weight of 25 lb. / 11.3 kg and 20% less high wear parts.

    Equipment Features

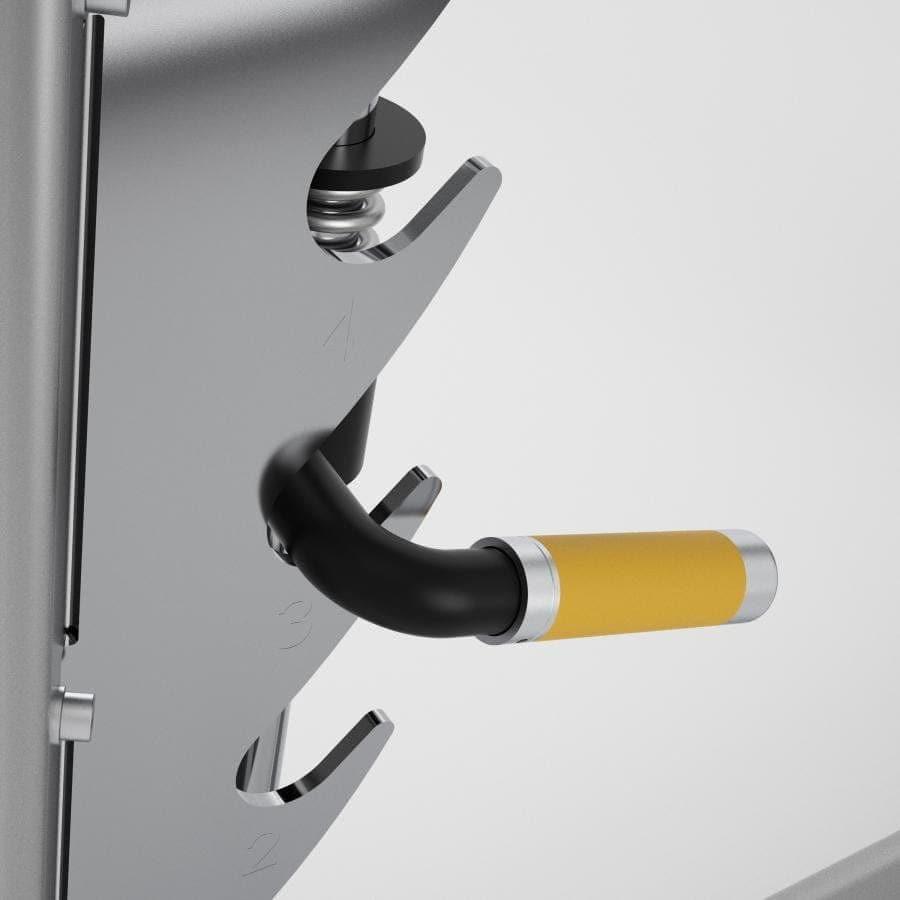

    Standard Features● Adjustable safety stops easily accessed from the user position
    ● Six weight plate storage horns
    ● Foot pads and heavy duty levelor device acomodates uneven floor surfaces

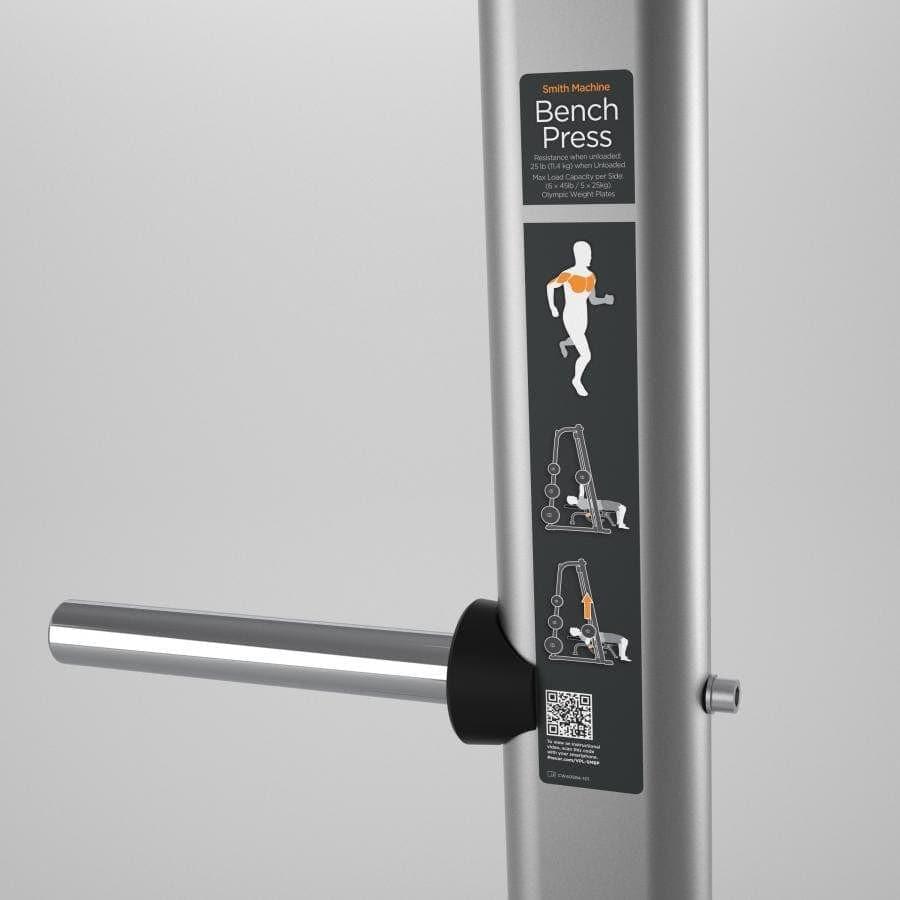

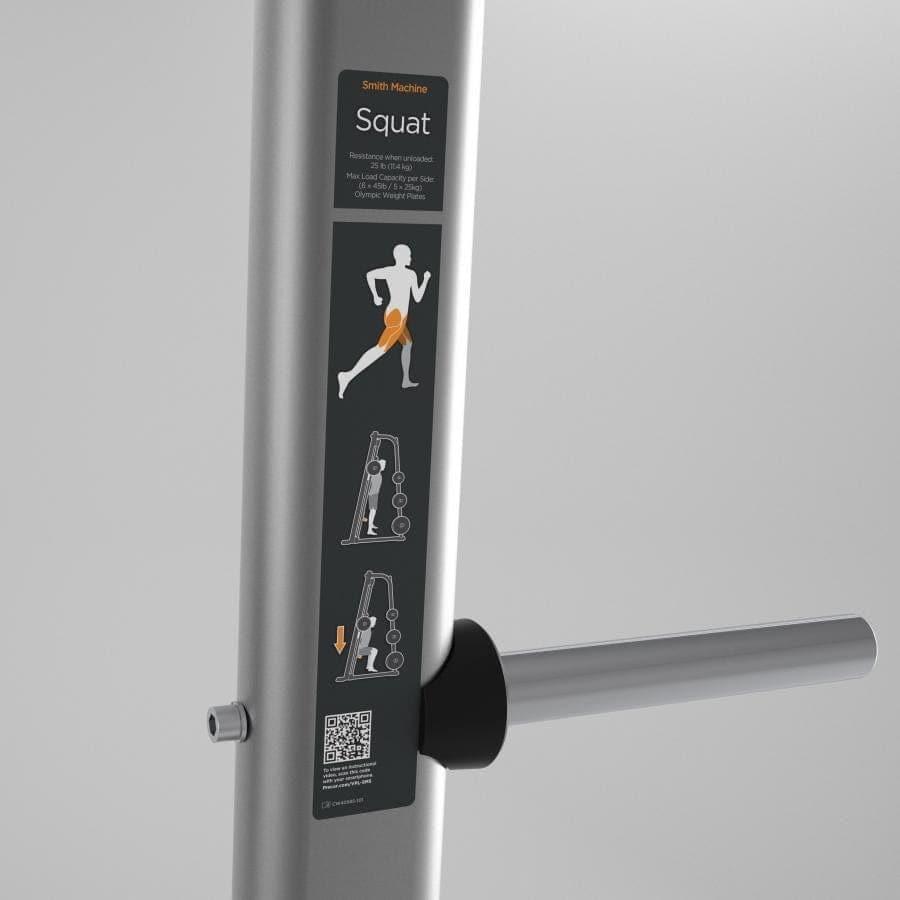

    Instructional PlacardEasy to understand exercise placards feature large set-up and start and finish position diagrams that are visibly easy to identify. QR codes provide quick and easy video instruction from your smart phone.
    Adjustments16 Bar hooks @ 4 in / 102 mm increments
    Bolt Down CapabilityYes

    Equipment Specifications

    Grip Diameter1.375 in / 35 mm
    FrameThe frame is 11 gauge (.120”) 6x2-inch trapezoidal steel tubing electro-welded to 4.55x2.28x.113-inch thick bent flat oval steel tubing. The weight bar is 4130 cold drawn seamless steel tube, 1.375” diameter x .095” thick.

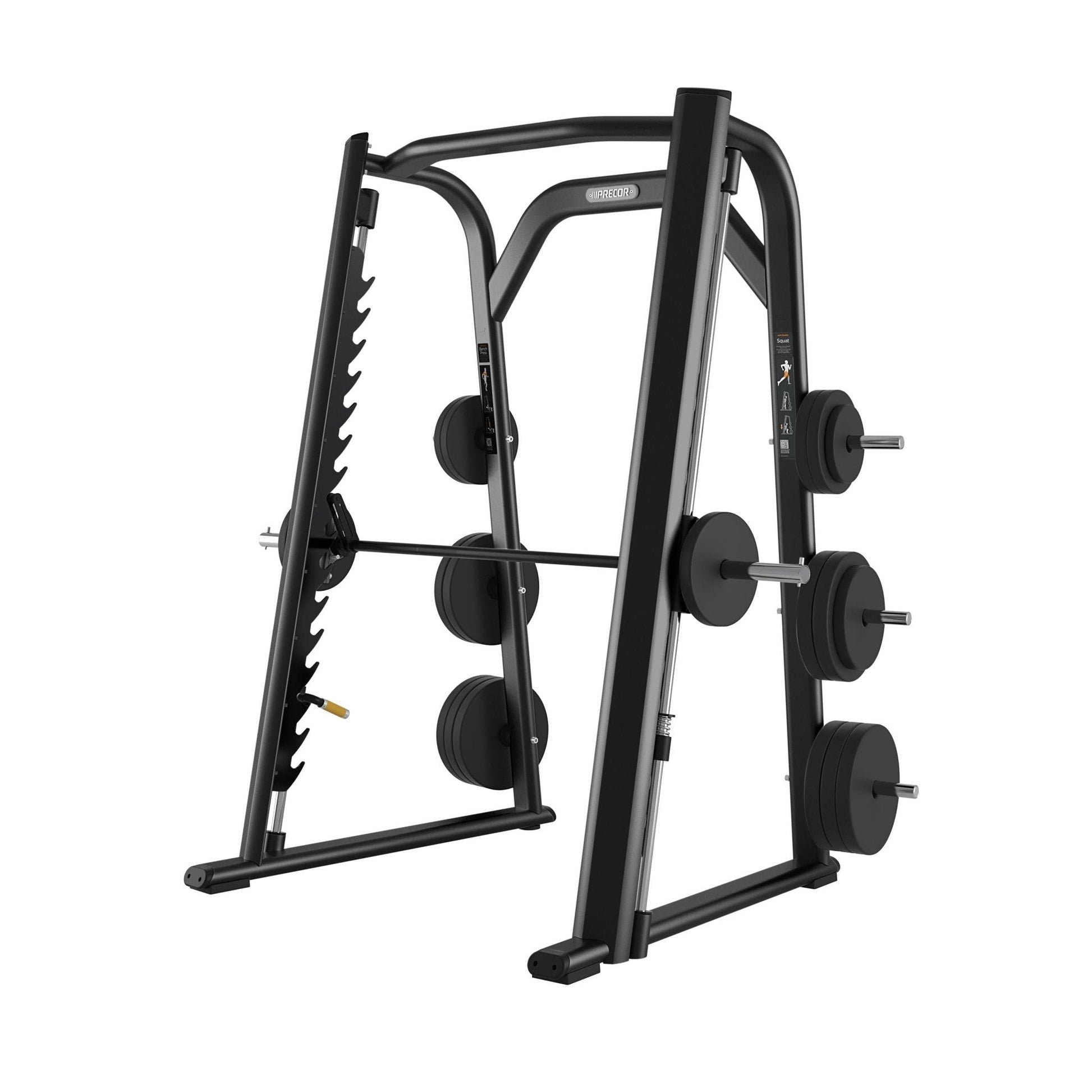

    Standard Frame / Movement Arm or Carriage ColorsFrame: Black Pearl; Movement Arm: Metallic Ash
    Frame: Gloss Metallic Silver; Movement Arm: Metallic Ash
    Stocked Upholstery ColorsAll Spice, Black, Grey
    Additional Upholstery Options (Additional lead time applies)American Beauty, Blue Jay, Burgundy, Deep Clay, Hunter Green, Navy, New Purple, Regal Blue, Slate

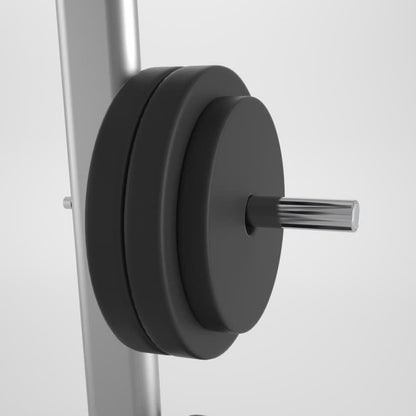

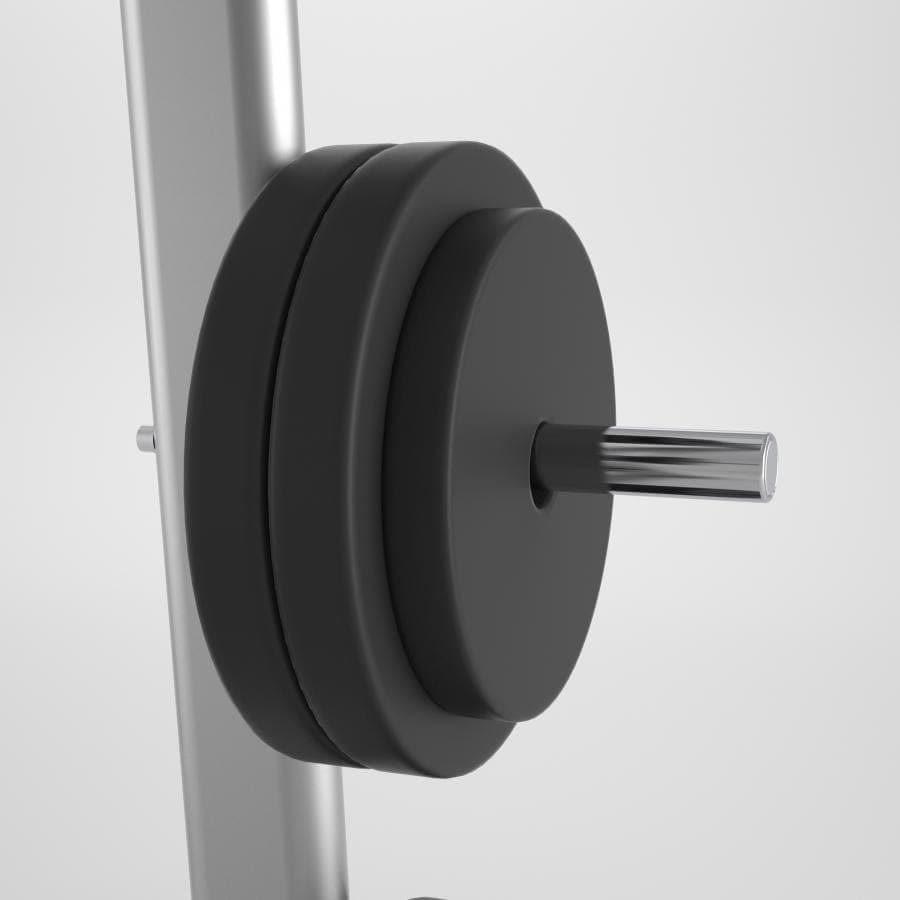

    Weight Storage HornsSix Storage horns at 10 in / 25 cm length each (three per side)
    Max Load Weight600 lb / 272 kg
    Starting Weight25 lb / 11.3 kg

    Equipment Dimensions and Weight

    Length56 in / 142 cm
    Width84 in / 214 cm
    Height90 in / 229 cm

    Shipping Dimensions and Weight

    Length56 in / 142 cm
    Width84 in / 214 cm
    Height90 in / 229 cm
    Shipping Weight395 lb / 179 kg
    • 10 years frame and welds
    • 5 years parts
    • 1 year surface finish
    • 6 months limited parts
    • 1 year labor
