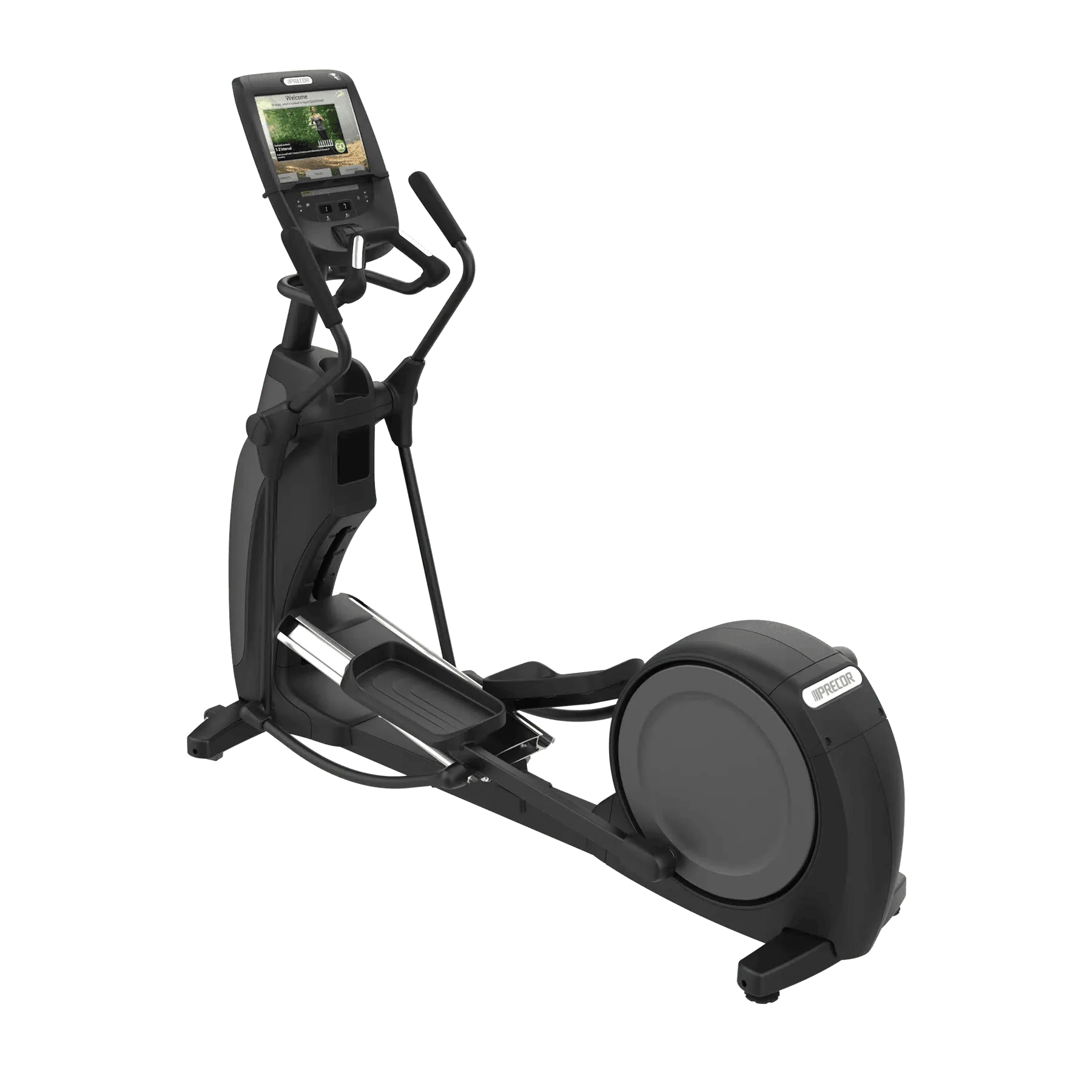

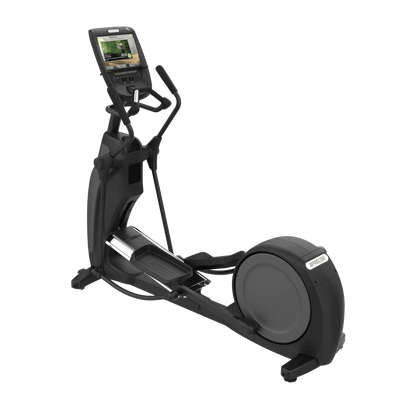

For an elliptical that strikes the optimal balance between durability, reliability, and innovation at a value price, look no further. The EFX 685 delivers on these essentials along with premium materials, club-level appearance, and features. The clean and proven design of the P82 touchscreen console makes it easy for exercisers to locate controls, inputs, and adjustments. The user interface delivers touchscreen responsiveness to swipes and selections, allowing exercisers to enjoy an uninterrupted workout.
Exercisers can isolate or crosstrain specific lower body muscle groups simply by adjusting the angle of the ramp, making it easy to focus on their individual fitness goals. Our patented elliptical path perfectly mimics a natural running stride, allowing exercisers to keep their heels down for a more comfortable, effective, and ergonomically correct motion.
With moving handlebars, exercisers can achieve a total body workout.

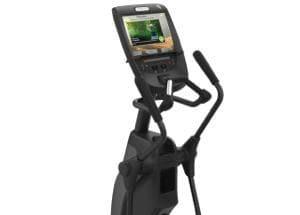

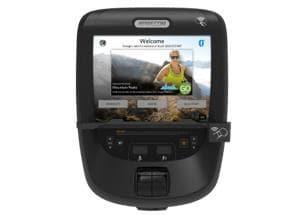

P82 Touchscreen Console
The P82 console not only offers a brilliant 15 in / 38.1 cm screen that is ergonomically positioned to deliver crystal clear entertainment viewing for exercisers in motion, but when networked is also a direct-to-exerciser communication portal allowing you an opportunity to build your brand, share information about activities and services, and strengthen the sense of community within your facility.
Frame: Gloss Metallic Silver Black Pearl
Plastics: Dark Tungsten
Long lasting appearance with enclosed rear covers, and covered frame and pivot joints. Easy to clean without removing the ramp cover or pedals. Rear access cover can be removed and replaced in less than two minutes by removing only two screws. Convenient access to check and adjust drive belt tension.
Wide transport wheels in the front of the EFX® allow the equipment to be moved when cleaning the floor.
Water Bottle and Accessories Holder
Thoughtful, secure storage with a logical, clean place for a water bottle, cell phone, and other accessories.
Single polyurethane wheels with over-sized axle and sealed bearings glide on precision extruded-aluminum tracks to distribute a user's weight for efficiency, providing an incredibly smooth feel.
10 to 35
Upper Body Handlebars
Biomechanics validated by a Washington state university for exercisers of all ages, fitness levels and sizes, from the 5% size female to the 95% size male user.

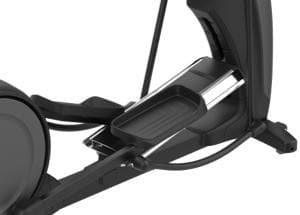

Oversized, polypropylene foot pedals fit your largest exerciser and are easy to clean.
Provides 20 different settings (10-35 degree ramp incline) for users to target different muscle groups. Ideal for all age and fitness levels.
7 W @ Resistance level 1 @ 40 Strides Per Minute (SPM)
Lose Weight 4-3 Interval Aerobic Aerobic Plus Fat Burner Heart Rate Zone Be Fit Manual 1:1 Interval 2:1 Interval 4:1 Interval Total Body Interval Rolling Hills Mountain Peaks Heart Rate Zone Get Toned Glute Toner Glute Toner Plus Leg Sculpt Leg Sculpt Plus Push Performance 1-4 Interval 1-2 Interval 5K Heart Rate Zone Test Your Fitness Fitness Test
Key Panel: Resistance Incline User Interface: Total Distance, Distance Remaining Total Calories Burned, Calories/Min, Calories/Hr, Mets, Watts Time Elapsed, Time Remaining, Segment Time Strides/Min, Avg Strides/Min, Total Strides Heart Rate, Average Heart Rate, Max Heart Rate
Heart Rate Monitoring
Handheld heart rate sensors located on fixed handlebars for ease-of-use by users of all sizes.
Equipped for heart rate telemetry reading using a chest strap.
Integrated Entertainment Options
Mobile Device Charger
Included (US only)
Personal Viewing System (PVS)
Integrated: NTSC, ATSC, PAL, SECAM, DVB-T/T2/C
Personal Viewing Screen (PVS) (Specification)
15 in / 38.1 cm LCD Capacitive Touch Screen
Ability to set club parameters, e.g. limit exercise time, set default language and pause time.
Minimum Space Between Foot Pedals (inches / cm)
1.5 in / 3.8 cm
Foot Pedal Dimensions (inches / cm)
16 x 8 in / 40.6 x 20.3 cm
8 in / 20 cm
Maximum User Weight
350 lb / 159 kg
Equipment Dimensions and Weight
80 in / 203 cm
30 in / 76 cm
72 inches / 183 cm
Machine Weight (base equipment)
315 lb / 143 kg
Shipping Dimensions and Weight
85 inches / 216 cm
30.75 in / 78 cm
28.125 in / 71.4 cm
368 lb / 167 kg
International 240 VAC
Applicable country-specific power cord
U.S. & Canada 120 VAC
120V/15A circuit with 5-15R NEMA receptacle
Personal Viewing Screen (PVS)
EN 957 / ASTM
Lifetime frame and welds; 10-yr parts and wear items; 3-yr console; 1-yr labor
