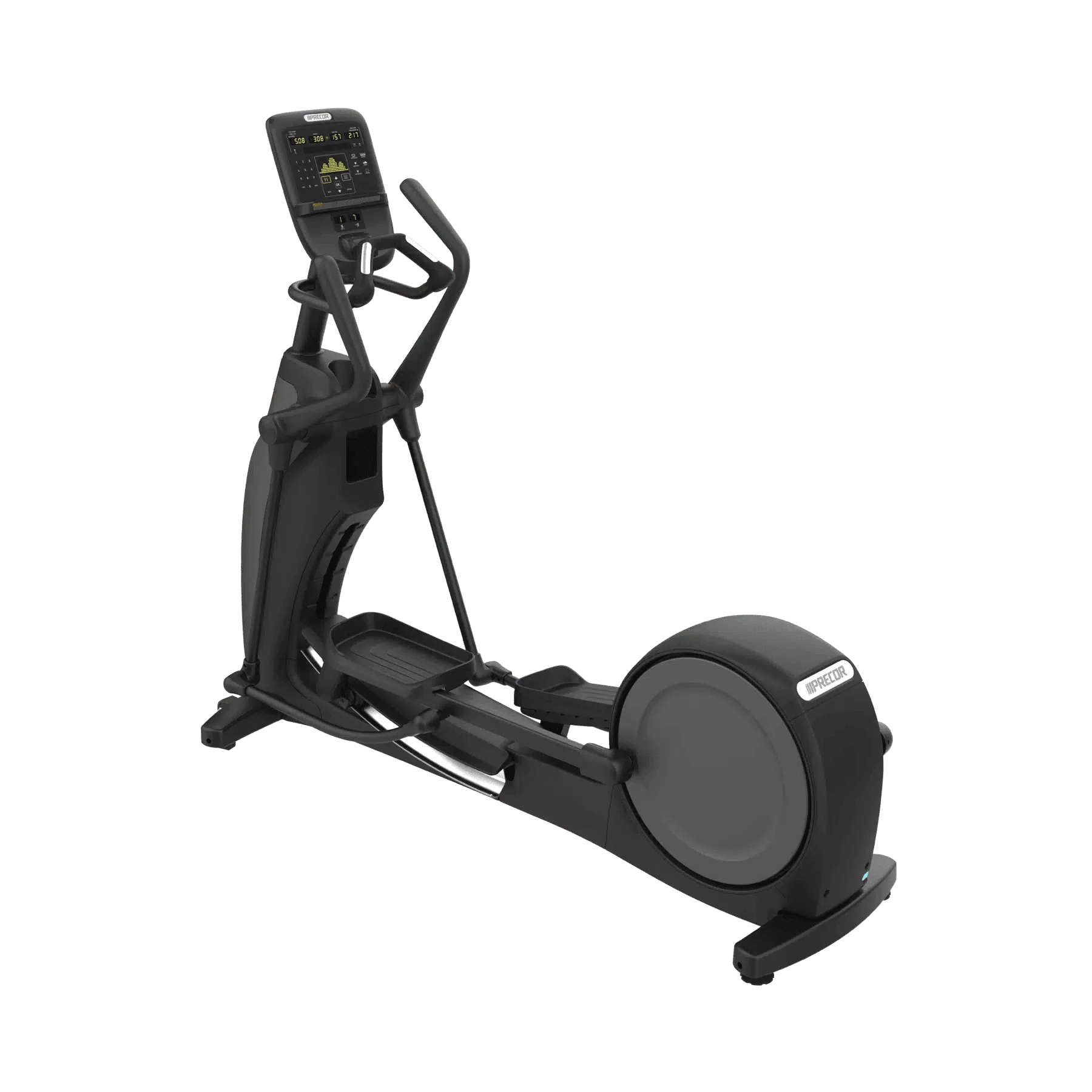

Precor EFX 835 Elliptical

Description

SPECIFICATIONS

Warranty

Reviews

The Precor Experience™ Series EFX 835 elliptical is the ultimate in fitness equipment. It features Precor's patented Converging CrossRamp® technology, which follows your natural stride and replicates the way your feet converge when you walk. This technology is used in fitness centers, universities, and hotels around the world. With the ability to adjust the ramp angle, you can isolate or cross-train specific lower body muscle groups, making it easy to target different areas for a varied workout that produces results.

The 800 Line includes six elliptical exercise machines: the EFX 833, EFX 835, EFX 863, EFX 865, EFX 883, and EFX 885. You can choose between fixed or moving arms and select from three console options (P30, P62, or P82). The machines come in a Black Pearl or Storm Grey frame. If you want the best elliptical machine available, the Precor EFX 800 Line is the way to go.

The EFX® 835 with Converging CrossRamp® provides the perfect elliptical for your facility, combining reliability with a natural converging stride path. Precor's tradition of service and reliability continues with this machine, which is easy to clean and maintain thanks to its covered ramp and rear drive housing, and Active Status Light. The EFX 835 offers a total-body workout with its patented CrossRamp® technology and moving handlebars. You can adjust the ramp incline from 10 to 35 degrees to target different muscle groups for a more varied workout. The unique converging stride path allows the exerciser's footpath to converge naturally, mimicking the motion of walking or running. The P31 console features easy-to-use motion controls and an LED-based display that provides essential fitness stats to keep users informed and engaged.


 SPECIFICATIONS



Equipment Features

Covers Long lasting appearance with covered ramp, enclosed rear covers, and covered frame and pivot joints.

Covered ramp to prevent dirt and debris build-up. Easy to clean without removing the ramp cover or pedals.

Rear access cover can be removed and replaced in less than 2 minutes by removing only two screws. Convenient access to check and adjust drive belt tension.

Front covers can be removed in less than 2 minutes, providing quick access to lift assembly.

Accessory Holder(s) Thoughtful, secure storage with a logical, clean place for your water bottle, cell phone, and other accessories.
Transport Wheels Wide transport wheels in the front of the EFX® allow the unit to be moved when cleaning the floor.
Biomechanics Biomechanics validated by a Washington state university for users of all ages, fitness levels and sizes, from the 5% size female to the 95% size male user.
Bearings Dual, in-line polyurethane wheels with over-sized axles and premium sealed bearings provide a perfectly balanced load, gliding on stamped, stainless steel tracks for an incredibly smooth feel.
Ramp Converging Adjustable CrossRamp®
Foot Pedals Oversized, polypropylene foot pedals fit your largest user and are easy to clean.
Ramp Angle 10-35°
Upper Handlebars Moving Handlebars
CrossRamp® Technology Provides 20 different settings (10-35 degree ramp incline) for users to target different muscle groups. Ideal for all age and fitness levels.
CrossRamp® Technology Automatic

Resistance System

Resistance System Durable, proven 3-phase hybrid generator / eddy current system with new, faster controller provides 20 levels to tailor workouts with consistent, smooth resistance. The 20 resistance levels range from 18 watts (level 1 at 40 SPM) to 720 watts (level 20 at 200 SPM).
Resistance Levels 1 - 20
Minimum Watts 18 watts
Maximum Watts 720 watts

Console Features

Console Type Large LED Display
Tactile Dome Keys Yes
QuickStart™ Yes
Motion Controls Yes
Numeric Keypad Yes
Muscle Monitor Shows muscle recruitment related to change in CrossRamp
Units Selection Metric and U.S. Standard
Preset Programs Manual Interval Interval Total Body Interval Variety Cross Country 1 Gluteal 2 Gluteal Custom Performance Hill Climb Fitness Test 1 Cross Training 2 Cross Training 3 Cross Training Navy Fitness Test Heart Rate Basic HRC Weight Loss
Console Language(s) Dutch, English, French, German, Italian, Russian, Spanish
Maximum Pause Time (Pause) 30 seconds
Electronic Readouts Resistance Level Incline Level Distance Strides / min Total Strides Calories Heart Rate Time Remaining Time Elapsed Time in Zone Segment Time Remaining Average Speed Calories / min Calories / hour Watts METS Target HR Average HR % Complete Workout Profile Workout summary
Maximum Workout Time unlimited

Heart Rate Monitoring

Touch Handheld heart rate sensors located on fixed handlebars for increased accuracy and ease of use by exercisers of all sizes.

Telemetry
Yes. Equipped for heart rate telemetry reading using a chest strap.
SmartRate® No

Integrated Entertainment Options

Reading Rack Integrated
Personal Viewing Screen (PVS) (Specification) 15in. Screen (Optional)
Entertainment Cap / Wireless Receiver Optional

Network Capabilities

CSAFE Ready Yes
FitLinxx Compatible Yes
Diagnostics Ability to set club parameters, e.g. to limit exercise time and pause time.

Equipment Specifications

Maximum User Weight (lbs / kg) 350 lbs / 159 kg
Step-up Height (footplate at lowest position) 8 inches / 20 cm
Foot Pedal Dimensions (inches / cm) 16 X 8 inches / 40.6 X 20.3 cm
Minimum Space Between Foot Pedals (inches / cm) 1.5 inches / 3.8 cm
Stride Length at Minimum Incline (inches / cm) 21 inches / 54 cm
Stride Length at Maximum Incline (inches / cm) 25 inches / 63 cm

Equipment Dimensions and Weight

Length 80 inches / 203 cm
Width 30 inches / 76 cm
Height 67 inches / 170 cm
Height with PVS 82 inches / 208 cm
Machine Weight (base equipment) 340 lbs / 154 kg

Shipping Dimensions and Weight

Length 85 inches / 216 cm
Width 30.75 inches / 78 cm
Height 28.125 inches / 71.4 cm
Shipping Weight 396 lbs / 180 kg

Power Requirements

Equipment Self-Powered
Personal Viewing Screen (PVS) Powered
Optional Power Supply Optional power supply available if long time periods of no use or need display to be continuously lit longer than 30 seconds after workout ends.
U.S. & Canada 120 VAC 120V/15A circuit with 5-15R NEMA receptacle
U.S. & Canada 240 VAC N/A
International 240 VAC Applicable country-specific power cord

Regulatory

FCC FCC
ETL ETL
CE CE
EN957 / ASTM EN957 / ASTM



Commercial Warranty:

  • Frame and welds: 7 Years
  • Parts: 3 Years
  • Labor: 1 Year



Residential Warranty:

  • Parts: 10 Years
  • Console: 3 Years
  • Labor: 1 Year
  • Frame: Lifetime

DESIGNED FOR YOU

Enjoy a wide-range of zero-impact cross-training options with Converging CrossRamp® technology, a revolutionary biomechanical breakthrough that enables a natural walking and running motion while you are exercising to reduce the wear and tear on your body.

CONTINUOUS INNOVATION

Precor designed the first elliptical machine for the commercial market in 1995, and it’s become the best selling elliptical in the world. Found in high-end gyms and five-star resorts everywhere, the Precor EFX 800 is built right here in the USA.

P31 CONSOLE

The P31 console features easy-to-use motion controls and and LED display that focuses on the essential fitness stats to keep exercisers informed and engaged.
