Precor

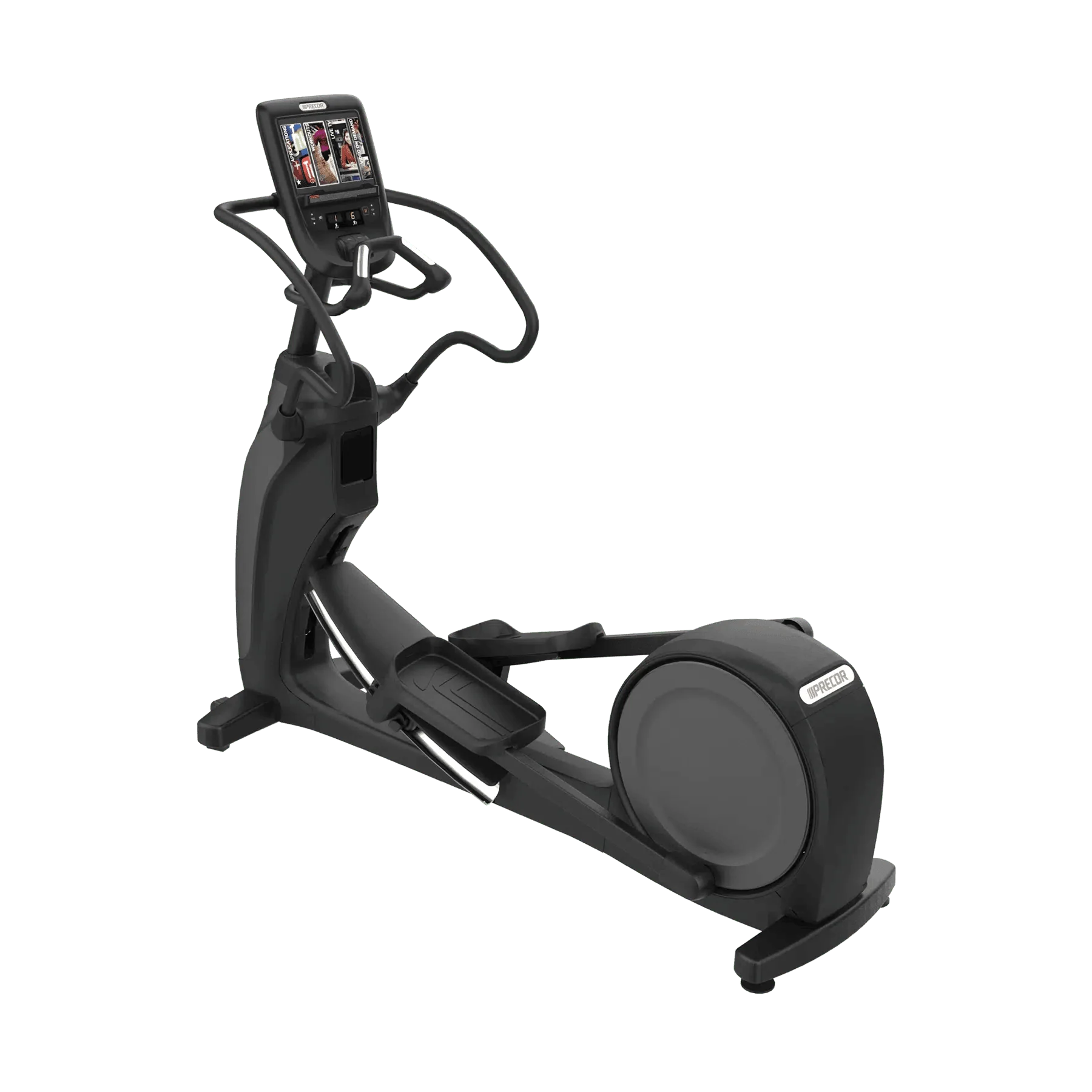

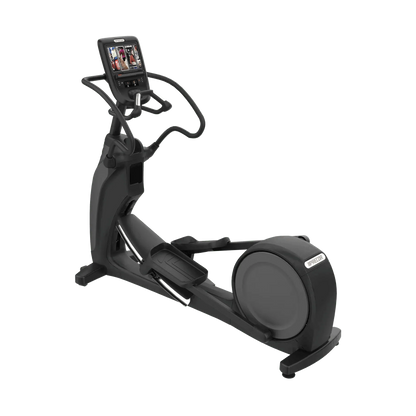

Precor EFX 863 Elliptical

Description

SPECIFICATIONS

Warranty

Reviews

The ultimate Precor elliptical, the Experience™ Series 800 Line features our patented converging CrossRamp® technology that follows your natural stride. Just imagine, when you walk, your feet converge toward the midline of your body, instead of staying in line with your hips. This converging motion is replicated in our 800 Line ellipticals and are featured in fitness centers, universities, and hotels across the world. Similar to our 200, 400, and 600 Lines of home and commercial ellipticals, you can isolate or cross train specific lower body muscle groups simply by adjusting the angle of the ramp, making it easy to target different muscle groups, to encourage training variance, and propel results.

The 800 Line of elliptical exercise machines includes the EFX 833, EFX 835, EFX 863, EFX 865, EFX 883, and EFX 885. In this line you can choose between fixed or moving arms and your choice of consoles (P30, P62, or P82). Available in a Black Pearl frame. If you’re looking for the best elliptical machine available, look no further than Precor EFX 800 Line.

The EFX® 863 with Converging CrossRamp® combines reliability with a natural converging stride path to give you the perfect elliptical for your facility.  Carrying on the tradition of Precor reliability and service, the EFX is easy to clean and maintain with a covered ramp and rear drive housing, and the Active Status Light - all to improve your ownership experience.  For exercisers, the EFX 863 combines the benefits of our patented CrossRamp® technology and fixed handlebars for a  lower body workout. The adjustable CrossRamp® technology offers ramp inclines from 10 to 35 degrees to target different muscle groups for more workout variety. And, our unique converging stride path allows the exerciser's footpath to converge naturally - just like walking or running.

FEATURES

Fixed Handlebars
Fixed handlebars allow users to focus on lower body workouts at higher resistance levels or challenge stabilizers during hands-free training.

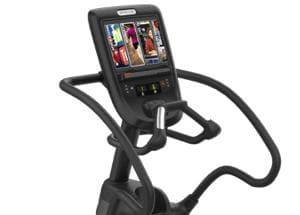

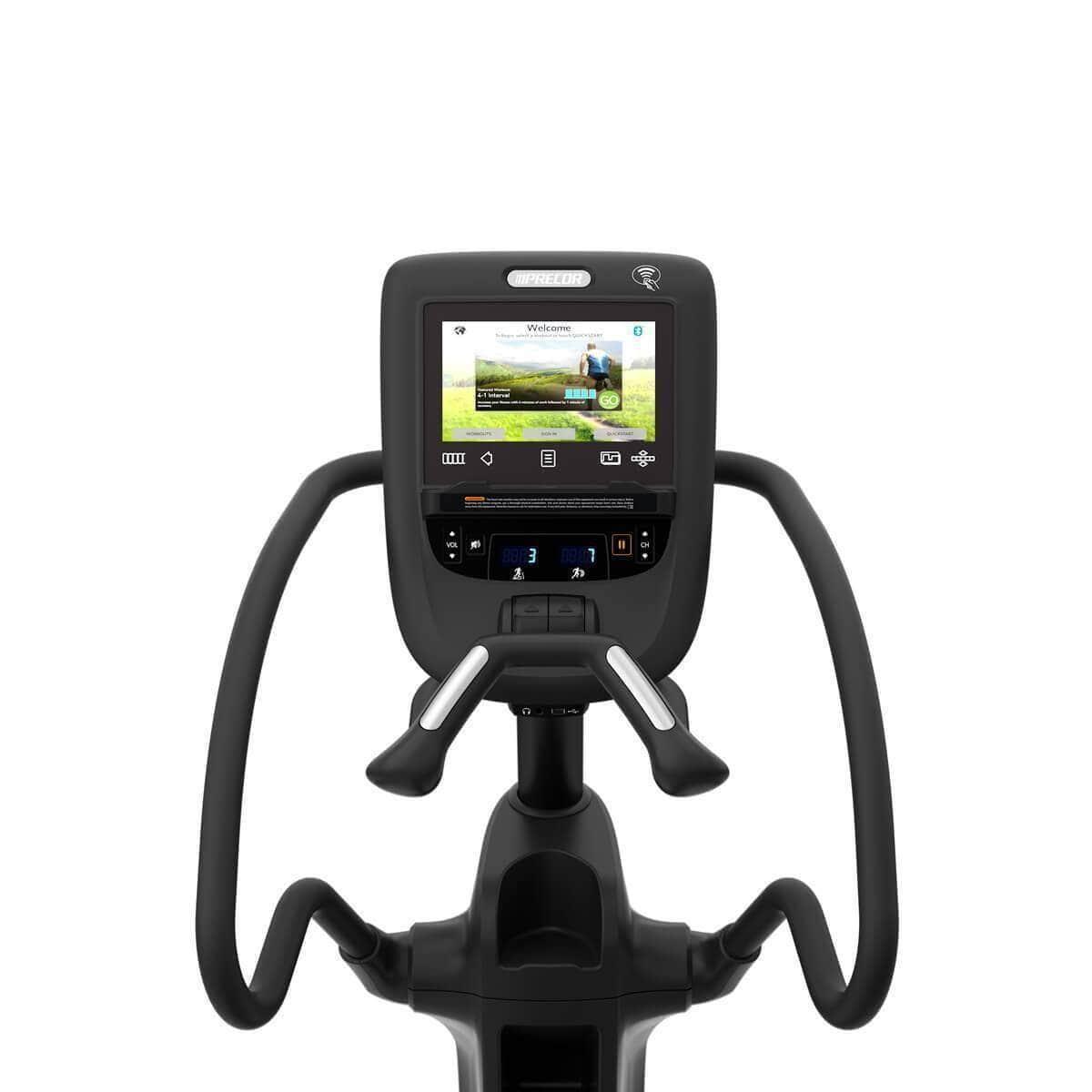

P62 Touchscreen Console

The P62 console provides a personalized viewing experience, remarkable TV clarity, and internet options that exercisers crave, all in a 10" screen. With the ability to "favorite" selections for the future, exercisers can customize their workout experience based on what is important to them.

Equipment Features

Water Bottle and Accessories Holder Thoughtful, secure storage with a logical, clean place for your water bottle, cell phone, and other accessories.
Covers Long lasting appearance with covered ramp, enclosed rear covers, and covered frame and pivot joints. Covered ramp to prevent dirt and debris build-up. Easy to clean without removing the ramp cover or pedals. Rear access cover can be removed and replaced in less than 2 minutes by removing only two screws. Convenient access to check and adjust drive belt tension. Front covers can be removed in less than 2 minutes, providing quick access to lift assembly.
Transport Wheels Wide transport wheels in the front of the EFX® allow the unit to be moved when cleaning the floor.
Bearings Dual, in-line polyurethane wheels with over-sized axles and premium sealed bearings provide a perfectly balanced load, gliding on stamped, stainless steel tracks for an incredibly smooth feel.

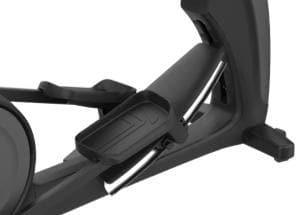

Foot Pedals Oversized, polypropylene foot pedals fit your largest user and are easy to clean.
Ramp Converging Adjustable CrossRamp®
Biomechanics Biomechanics validated by Western Washington University for users of all ages, fitness levels and sizes, from the 5% size female to the 95% size male user.
Ramp Angle 10 to 35
Upper Body Handlebars Fixed handlebars
CrossRamp® Technology Provides 20 different settings (10-35 degree ramp incline) for users to target different muscle groups. Ideal for all age and fitness levels.

Resistance System

Minimum Watts 18
Maximum Watts 720
Resistance System Durable, 3-phase hybrid generator / eddy current system with new, faster controller provides 20 levels to tailor workouts with consistent, smooth resistance. The 20 resistance levels range from 18 watts (level 1 at 40 SPM) to 720 watts (level 20 at 200 SPM).
Resistance Levels 1 - 20

Console Features

Numeric Keypad Yes, in software
Motion Controls Yes - Resistance and Incline
Tactile Dome Keys Vol up/down, mute, Channel up/down, pause workout
QuickStart™ Yes
Console Language(s) English, Chinese, Danish, Dutch, French, Finnish, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish
Units Selection Metric or U.S. Standard
Maximum Workout Time 120 minutes (60 default)
Maximum Pause Time (Pause) 300 seconds (120 default)
Electronic Readouts Key Panel:
Resistance
Incline
User Interface:
Total Distance, Distance Remaining
Total Calories Burned, Calories/Min, Calories/Hr, Mets, Watts
Time Elapsed, Time Remaining, Segment Time
Strides/Min, Avg Strides/Min, Total Strides
Heart Rate, Average Heart Rate, Max Heart Rate
Featured Workout of the Day Yes
Video Decoding MPEG-2, MPEG-4, H.264
Console Type 10.1 in / 25.7 cm LCD Capacitive Touch Screen
Preset Programs Lose Weight
4-3 Interval
Aerobic
Aerobic Plus
Fat Burner
Heart Rate Zone
Be Fit
Manual
1:1 Interval
2:1 Interval
4:1 Interval
Total Body Interval
Rolling Hills
Mountain Peaks
Heart Rate Zone
Get Toned
Glute Toner
Glute Toner Plus
Leg Sculpt
Leg Sculpt Plus
Push Performance
1-4 Interval
1-2 Interval
5K
Heart Rate Zone
Test Your Fitness
Fitness Test

Network Capabilities

Ethernet 10/100/1000 Base-T
Diagnostics Ability to pull log files, set club parameters, e.g. limit exercise time, set default language and pause time.
Wifi 802.11 a/b/g/n, 2.4 GHz MIMO and 5 GHz multiple antenna operation

Heart Rate Monitoring

Touch Handheld heart rate sensors located on fixed handlebars for increased accuracy and ease-of-use by users of all sizes.
Telemetry Equipped for heart rate telemetry reading using a chest strap.
Heart Rate Sensor Advisory

The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions.

Integrated Entertainment Options

Closed Captioning Yes, CC1-4, Text 1-4 (North America only)
Video decoding MPEG-2, MPEG-4, H.264
Global TV Support Integrated tuner - NTSC, ATSC, PAL, SECAM, DVB-T/T2/C
Mobile Device Charger Yes
Reading Rack Standard
Personal Viewing System (PVS) Integrated
Personal Viewing Screen (PVS) (Specification) 10.1 in / 25.7 cm LCD Capacitive Touch Screen Supports NSTB, PAK, PAL BG Standards, Closed Caption
Video inputs RF, HDMI (media adapter only - future)

Equipment Specifications

Stride Length at Minimum Incline (inches / cm) 21 inches / 54 cm
Stride Length at Maximum Incline (inches / cm) 25 inches / 63 cm
Maximum User Weight 350 lbs / 159 kg
Minimum Space Between Foot Pedals (inches / cm) 1.5 inches / 3.8 cm
Foot Pedal Dimensions (inches / cm) 16 x 8 inches / 40.6 x 20.3 cm
Step-up Height (footplate at lowest position) 8 inches / 20 cm
Standard Frame Colors Gloss Metallic Silver
Black Pearl

Equipment Dimensions and Weight

Length 80 inches / 203 cm
Width 30 inches / 76 cm
Equipment Weight 340 lbs / 154 kg
Height 72 inches / 183 cm

Shipping Dimensions and Weight

Length 85 inches / 216 cm
Width 30.75 inches / 78 cm
Height 28.125 inches / 71.4 cm
Shipping Weight 396 lbs / 180 kg

Power Requirements

Equipment Powered
International 240 VAC Applicable country-specific power cord
U.S. & Canada 240 VAC 220V-240V/15A circuit with 5-15R NEMA receptacle
U.S. & Canada 120 VAC 120V/15A circuit with 5-15R NEMA receptacle
Cord Length 12 feet / 3.7 meters

Regulatory

cTUVus Yes
IEC CB Yes
FCC Yes
ETL Yes
CE Yes
EN957 Yes
ASTM Yes



Commercial Warranty:

  • Frame and welds: 7 Years
  • Parts: 3 Years
  • Labor: 1 Year



Residential Warranty:

  • Parts: 10 Years
  • Console: 3 Years
  • Labor: 1 Year
  • Frame: Lifetime

DESIGNED FOR YOU

Enjoy a wide-range of zero-impact cross-training options with Converging CrossRamp® technology, a revolutionary biomechanical breakthrough that enables a natural walking and running motion while you are exercising to reduce the wear and tear on your body.

CONTINUOUS INNOVATION

Precor designed the first elliptical machine for the commercial market in 1995, and it’s become the best selling elliptical in the world. Found in high-end gyms and five-star resorts everywhere, the Precor EFX 800 is built right here in the USA.

P62 CONSOLE

Same media goodness as the P82 with a more compact 10” built-in touch screen. The feel-good design makes it easy to adjust your workout or entertainment on-the-fly.
