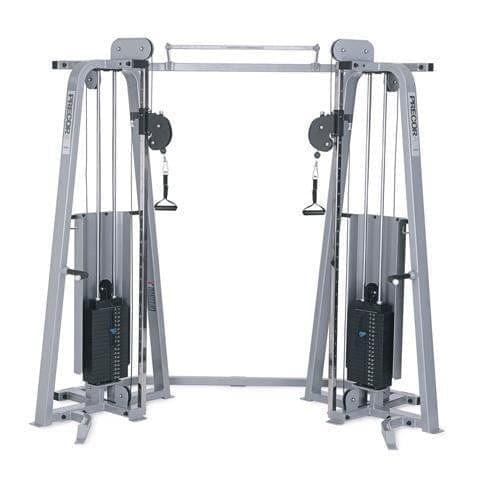

Precor Icarian FTS Functional Training Workstation





The Icarian® FTS Functional Training System is a highly flexible apparatus ideal for functional strength training. Literally dozens of upper and lower body exercises can be performed. The FTS Functional Training System is of the highest commercial-quality construction, using a durable cable-and-pulley design for application of resistance, captured inside the signature Icarian 2x4-inch (50 x 100 mm) bent-steel frame construction. The adjustable pulley carriages permit users freedom of movement. The adjustments are intuitive, simple and easy to use.

  • Dual weight stacks with a lift ratio of 2:1
  • User-friendly pulley adjustments offer 24 start positions
  • Pull up bar for added variety

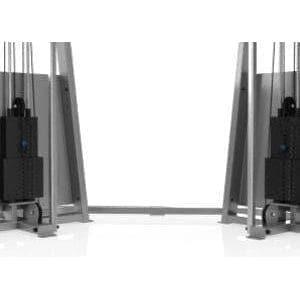

Optional Heavy Weight Stack

Standard dual weight stacks: 150 lb (68 kg) each; Optional dual heavy weight stacks 200 lb (91 kg) each.

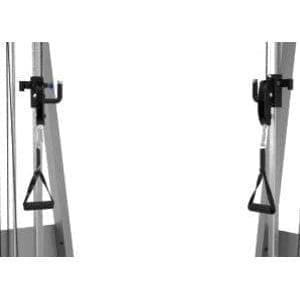

Pulley Adjustments

This unit fits every user for many different exercises with its adjustable height options on the pulleys.

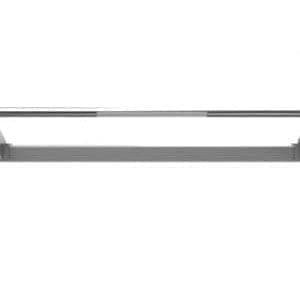

Pull Up Bar

The center pull up allows for added variety while maintaining space efficiency.


Equipment Features

Standard Features Adjustable Start Position Weight Stack Shroud Cover
Rubber Feet Optional
Weight Stack Dual weight stacks: 150 lb (68 kg) each
Depicted weight stack shrouds are not available
Instructional Placard Wall chart instructional placard
Frame and Finish 11 gauge (.120") and 7 gauge (.188") 2x4-inch bent electroweld steel tubing. Electrostatically applied, heat-cured powder coat.
Adjustments 22 pulley carriage adjustment positions

Equipment Specifications

Weight Stack Standard 150 lb / 68 kg
Workout Area (L x W) 98 x 96 inches / 250 x 240 cm
Standard Frame Colors Gloss Metallic Silver
Metallic Ash
Desert Bronze
Black Magic Gloss
Gloss White
Black Pearl

Equipment Dimensions and Weight

Length 98 inches / 249 cm
Width 58 inches / 147 cm
Height 91 inches / 230 cm
Equipment Weight 840 lb / 382 kg

Shipping Dimensions and Weight

Shipping Weight 850 lb / 386 kg
Frame and Weldments Lifetime
Parts (mechanical) 5 years
Wear Items 6 months
Labor 1 year
