Precor

Precor Resolute Adjustable Cable Crossover

Description

SPECIFICATIONS

Warranty

Reviews

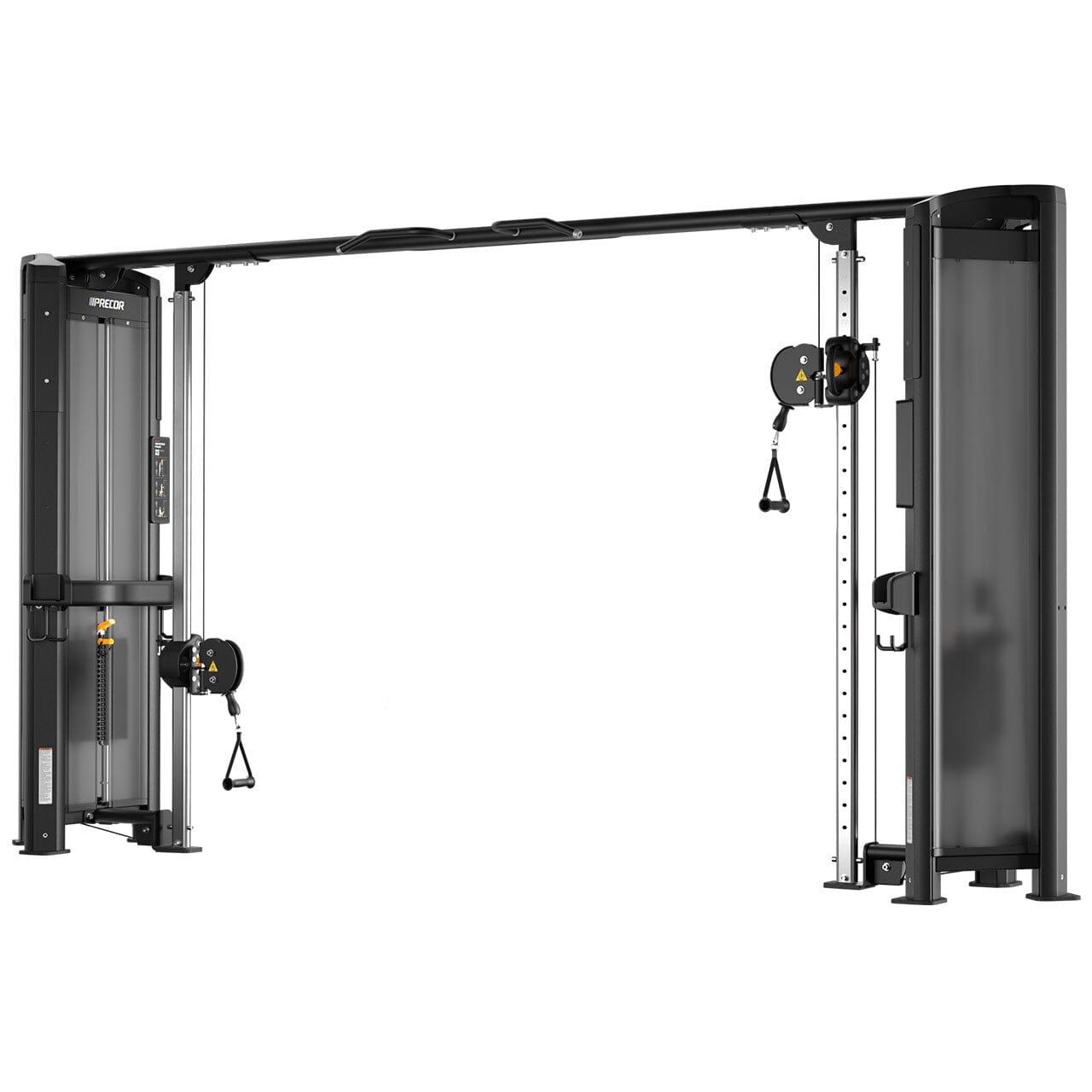

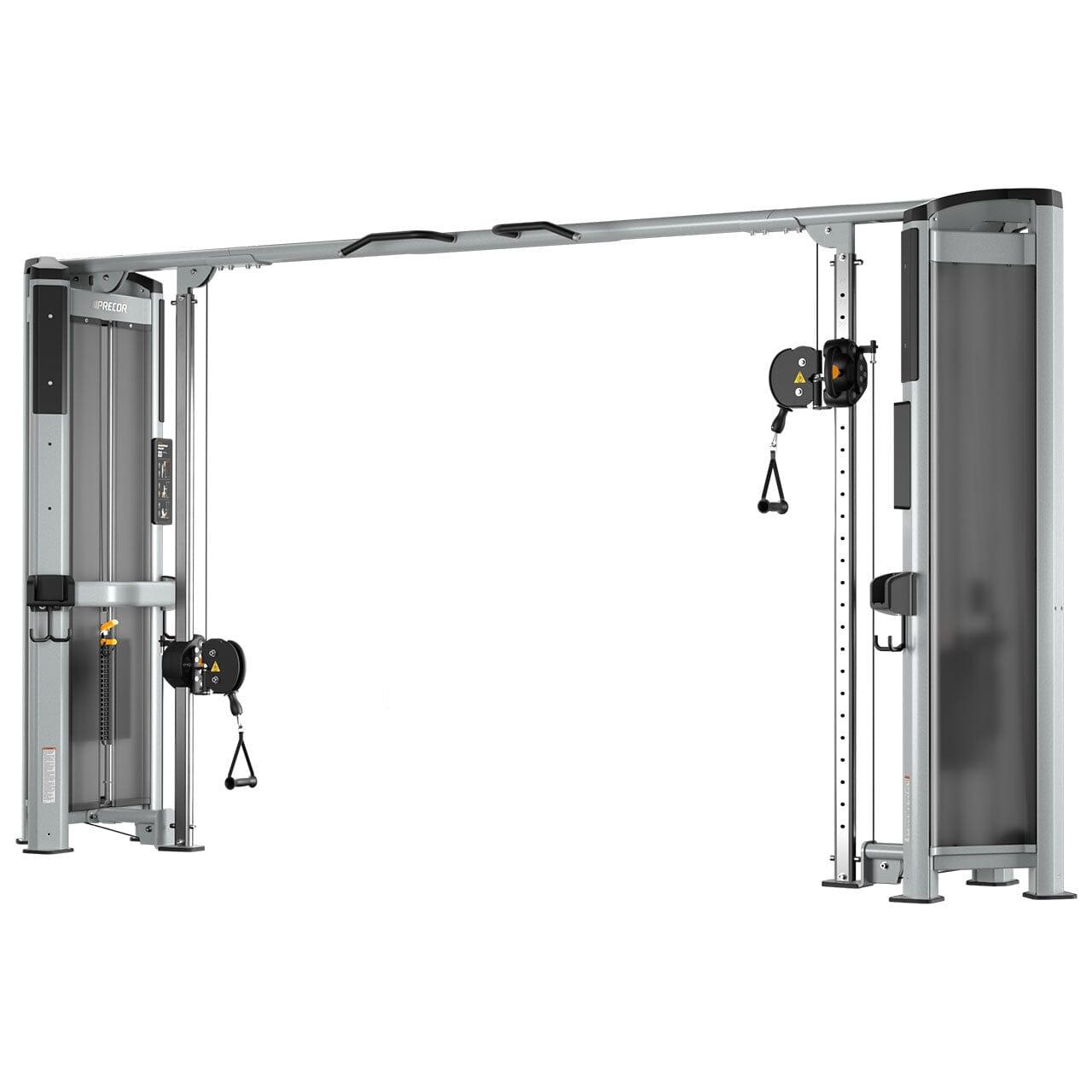

The Precor Adjustable Cable Crossover (formerly the Icarian Series 407) is a stand-alone cable crossover machine with two adjustable high/low pulley stations and a connector that offers dual chin-up bar options. The Crossover adjusts quickly to give users a wide range of exercise options.

With attention to biomechanics, comfortable touch points, and easy-to-use adjustments, our Icarian® Strength Line helps members of all abilities benefit from the value of strength training.

Product Features

  • Traditional cable crossover design
  • Accommodates variety of exercise functions
  • Dual chin-up stations
SPECIFICATIONS

Equipment Features

Upholstery Premium-quality upholstery with Beautyguard protective topcoat finish. Fabric meets or exceeds California fire regulations (Bulletin 117, section E). Double-layer slipcover in appropriate high wear areas. Double stitching on all seams.
Bolts Grade 5 black zinc in most applications.
Cable Routing Wherever possible, redirection pulleys are used to route cables close to frame to minimize chance of external interference.
Handles Slip-resistant rubber sleeve with machined alloy end-cap.
Weight Stack On most selectorized units, the weight stack is elevated 5 inches to facilitate user pin selection from seated position.
Selector Plates Each selector plate entirely precision machined on all surfaces. Top plate has replaceable Igus precision self-lubricating bushings. Black painted protective finish.
Pivot Points and Joints Pillow block or flange-mount motor-grade rotary bearings or sleeve bearings utilizing either oil-impregnated bronze bushings or pre-lubricated Igus nylon bushings.
Pulleys and Cables Glass-fiber-reinforced nylon pulleys with precision motor-grade ball bearings. 3/16-inch (7x19) aircraft cable coated with black pressure-extruded nylon to 1/4 inch or 1/8 inch coated to 3/16 inch. The cable will conform to specification MIL-W-83420D-BARE cable only. Attachments are climbing-rated carabiner design.
Frame and Finish 11 gauge (.120") and 7 gauge (.188") 2x4-inch bent electroweld steel tubing. Minimum of 3 standard bolt tabs on appropriate units. Abrasive grit pre-finish is followed by electrostatically applied, heat-cured powder coat.
Guide Rods Guide rods are precision centerless ground, polished, with corrosion-resistant plating for smooth operation and retardation of rust.
Bearings and Pivot Points Oversized linear reticulating ball bearings are self-aligning, sealed and running on casehardened shafts.

Equipment Specifications

Weight Stack Standard 150 lb / 68 kg
Options Rubber Feet Standard Shroud
Weight Stack Heavy 200 lb / 91 kg (OPTIONAL)
Weight Stack Depicted weight stack shrouds are not available
Standard Frame Colors Gloss Metallic Silver
Metallic Ash
Desert Bronze
Black Magic Gloss
Gloss White
Black Pearl
Stocked Upholstery Colors All Spice
American Beauty
Black
Blue Jay
Burgundy
Deep Clay
Grey
Hunter Green
Navy
New Purple
Regal Blue
Slate

Equipment Dimensions and Weight

Length 176 inches / 447 cm
Width 43 inches / 109 cm
Height 91 inches / 231 cm
Equipment Weight 870 lb / 396 kg
WARRANTY
  • 10-year - frame/welds
  • 1 year -Surface Finish
  • 5-years - Parts
  • 6 months - Limited Parts
  • 1-year - labor
