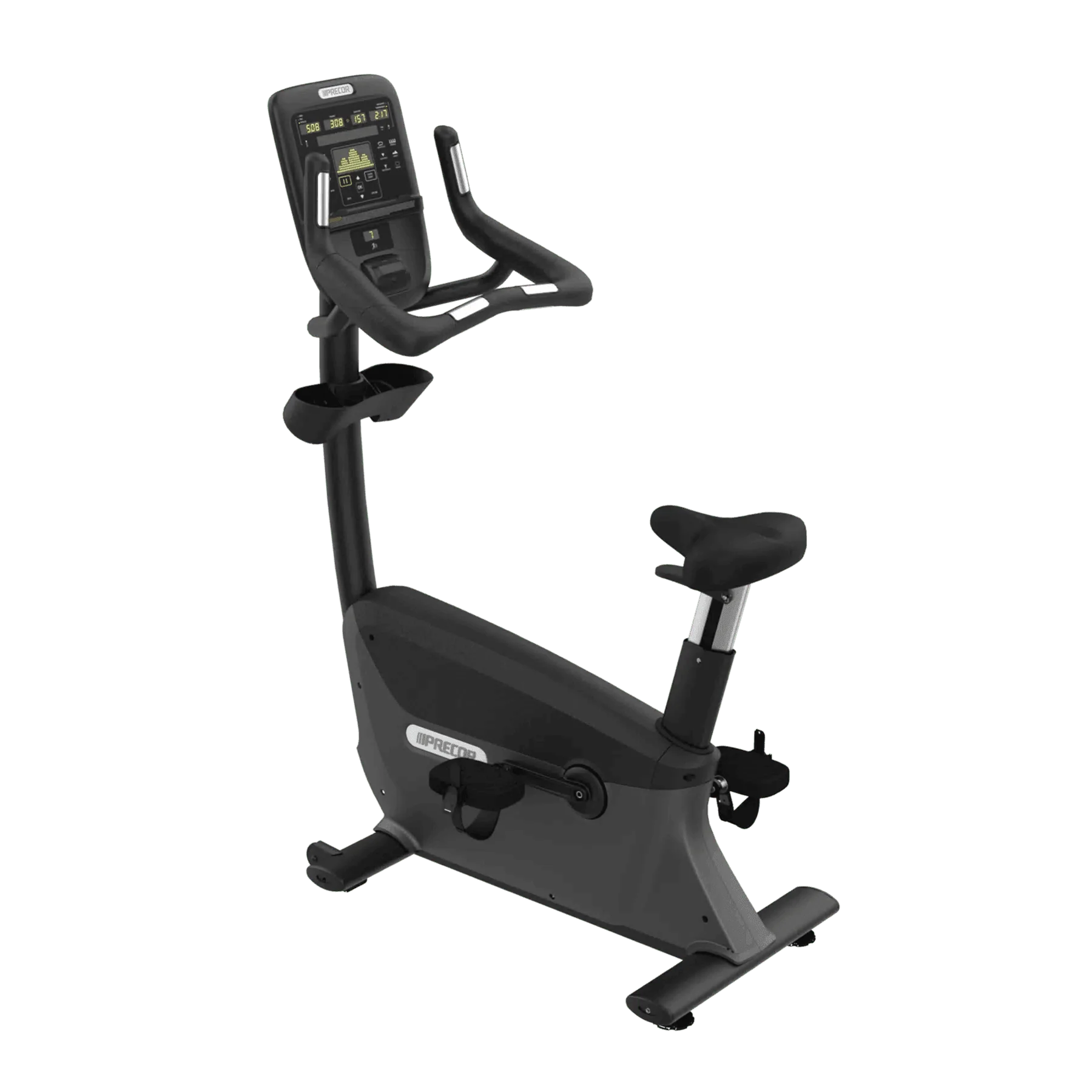

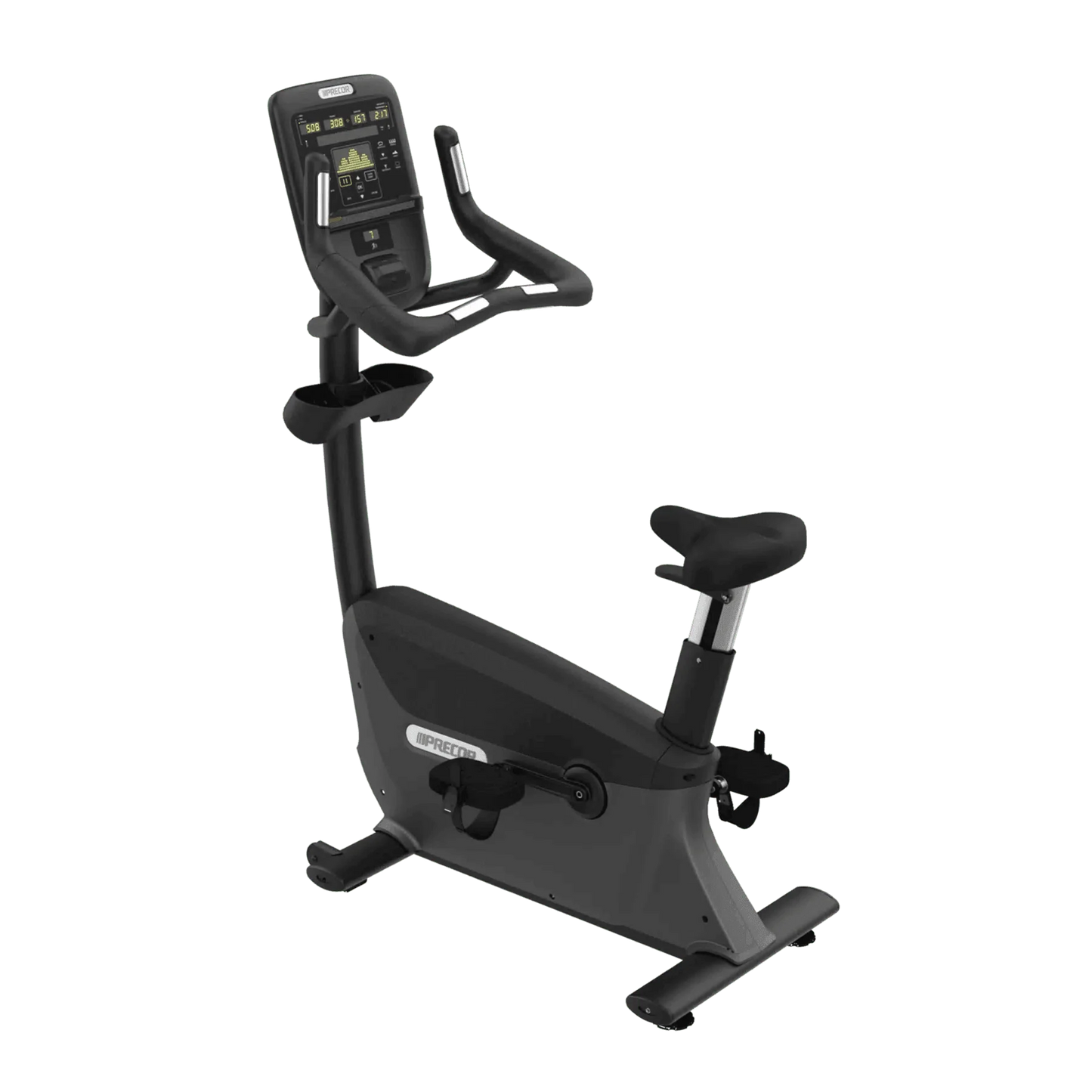

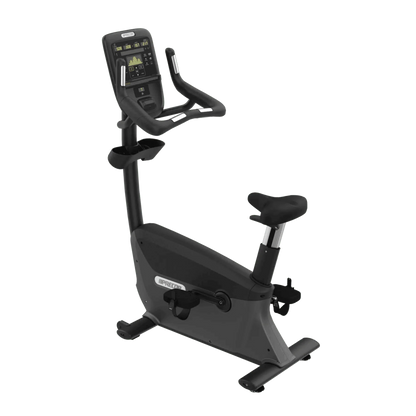

Precor UBK 835 Upright Bike

Color
Black

Looking for a low-impact cardio workout, or starting a fitness program? The Precor Experience™ Series 800 Line of upright stationary bikes are an excellent choice. They are the exact same commercial bike used in fitness centers worldwide, and feature a variety of programs, features, and custom designed handlebars to make your ride more comfortable. Within this line, you'll enjoy one-handed seat adjustments, on or off the bike, and a two-stage drive system that ensures a smooth, comfortable, quiet operation, and consistent resistance progression.  Each bike in this line also features custom-designed handlebars with integrated handheld heart rate for maximum comfort and efficient workout experience, that integrates with most 5 MHz HR chest straps. The 800 Line of upright bikes features three models, UBK 835, UBK 865, and UBK 885. The difference between each model is the console (P30, P62, or P82) and is available in a Black Pearl frame.


DESCRIPTION

The self-powered UBK 835 upright bike features custom-designed handlebars with integrated touch heart rate for maximum comfort and efficient workout experience. One-handed seat adjustment on or off the bike, redesigned saddle for riding comfort and improved knee over pedal spindle (KOPS) geometry for efficient pedalling mean a smooth, comfortable workout.

Easy of Assembly & Service

The easy to remove shroud ensures easy access to the belt-drive system for maintenance and servicing without removing the pedals or crank.

Innovation for Superior Riding Comfort

Over-molded handle bars add comfort and durability while offering heart rate contacts and three ergonomic riding positions: upright, cruising and road. The simple seat adjustment allows the user to change the position of the seat with one hand, either on or off the bike.

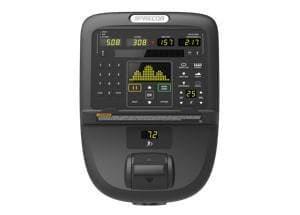

P31 Console

Finally, an LED console that works harder for you, your servicers, and your exercisers. Get integrated asset management to supercharge your service techs with extra information, right at their fingertips. Exercisers will enjoy the well-placed channel and volume change controls.

SPECIFICATIONS

Equipment Features

Handlebars Handlebar design offers three riding positions - upright, cruising, and road. The overall width of the handlebars places the user in better ergonomic position with the forearms more directly under the shoulders. In the road position, the ergonomic-shaped handlebars position the wrists in a natural, neutral position.

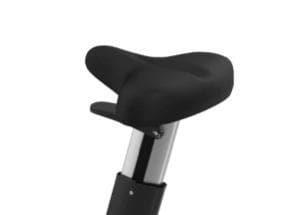

Seat Ergonomic seat design with comfort groove. 10.5 inches (27 cm) width that quickly tapers to a narrow nose for improved riding comfort. Universal seat post allows easy installation of your own saddle.
Biomechanics KOPS Biomechanics (Knee Over Pedal Spindle) - to achieve proper pedaling biomechanics, the seat post and seat post offset from the crank is key to aide in efficient pedaling and reduced shear force on the knee. The seat post angle is 74 degrees with a 5 inch (13 cm) offset from the crank axle. This places the forward knee directly over the ball of the foot (or pedal spindle) when the pedals are in a horizontal position.
Bearings The bottom bracket assembly uses a hardened steel shaft with deep-groove sealed precision ball bearings designed for smooth operation and exceptional service life.
Pedals Dual-sided pedals can be used without the pedal straps. The extra wide pedal comfortably accommodates feet of all sizes.
Frame Two-step powder-coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame.
Seat Adjustment New, convenient seat adjustment allows the user to easily change the seat to their desired height, either on or off the bike.
Covers Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks.
Transport Wheels Integrated
Cable Management Optional
Universal Seat Mount Yes

Resistance System

3-Piece Crank 3-piece compact crank assembly tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal.
Drive System The two-stage drive system yields a smooth, comfortable, quiet operation with a lower start-up resistance and more consistent resistance progression than single-stage drive systems.
3-Phase Generator 3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike.
Belt Drive Belt drive for smoother, quieter operation and reduced maintenance.
Resistance Levels 25
Minimum Watts 18 (level 1 at 20 RPM)
Maximum Watts 750 (level 25 at 150 RPM)

Console Features

Console Type Large LED Display
Tap Control No
Tactile Dome Keys Yes
QuickStart™ Yes
Numeric Keypad Yes
Units Selection Metric or U.S. Standard
Preset Programs Manual
Variety
Cross Country
Random
Custom
Resistance
Weight Loss
Interval 1:1 1:2 1:3
Heart Rate Control
Basic HRC
Performance
Fitness Test
Hill Climb
Watts Control
Console Language(s) Dutch, English, French, German, Italian, Russian, Spanish
Maximum Pause Time (Pause) 30 seconds
Electronic Readouts Resistance Level Distance, RPM, Speed Calories Heart Rate Time Remaining, Time Elapsed Time in Zone, Segment Time Remaining, Average Speed, Calories / minute, Calories / hour, Watts, METS, Target HR, Average HR, % Complete Workout Profile Workout Summary
Maximum Workout Time unlimited

Heart Rate Monitoring

Touch Yes. Touch heart rate sensors conveniently located on the handlebars in both the upright and road positions.
Telemetry Yes. Integrated telemetry heart rate reads heart rate from a user's heart rate chest strap.
SmartRate No

Integrated Entertainment Options

Reading Rack Integrated
Personal Viewing Screen (PVS) (Specification) 15in. Screen
Personal Viewing System (PVS) + Personal Entertainment Player (PEP) (iPod® compatibility) Optional
Entertainment Cap / Wireless Receiver Optional

Network Capabilities

CSAFE Ready Yes
FitLinxx Compatible Yes
Diagnostics Ability to set club parameters, e.g. limit exercise time, set default language and pause time.

Equipment Specifications

Maximum User Weight (lbs / kg) 350 lbs / 159 kg
User Height Range (inches / cm) 58 to 78 / 147 to 198
Crank Width 19 / 7.5
Resistance Range 25
18 (level 1 at 20 RPM)
750 (level 25 at 150 RPM)

Equipment Dimensions and Weight

Length 48 inches / 122 cm
Width 21 inches / 53 cm
Height 62 inches / 157 cm
Height with PVS 72 inches / 183 cm
Equipment Weight 160 lbs / 73 kg

Shipping Dimensions and Weight

Length 51.5 inches / 131 cm
Width 28 inches / 71 cm
Height 54 inches / 137 cm
Shipping Weight 178 lbs / 81 kg

Power Requirements

Equipment Self-Powered
Personal Viewing Screen (PVS) Powered
Optional Power Supply Optional power supply available if long time periods of no use or need display to be continuously lit longer than 30 seconds after workout ends.
U.S. & Canada 120 VAC 120V/15A circuit with 5-15R NEMA receptacle
U.S. & Canada 240 VAC N/A
International 240 VAC Applicable country-specific power cord

Regulatory

FCC FCC
ETL ETL
CE CE
EN957 / ASTM EN957 / ASTM
WARRANTY
  • Lifetime frame and welds
  • 10-year parts and wear items
  • 3-year console
  • 1-year labor
