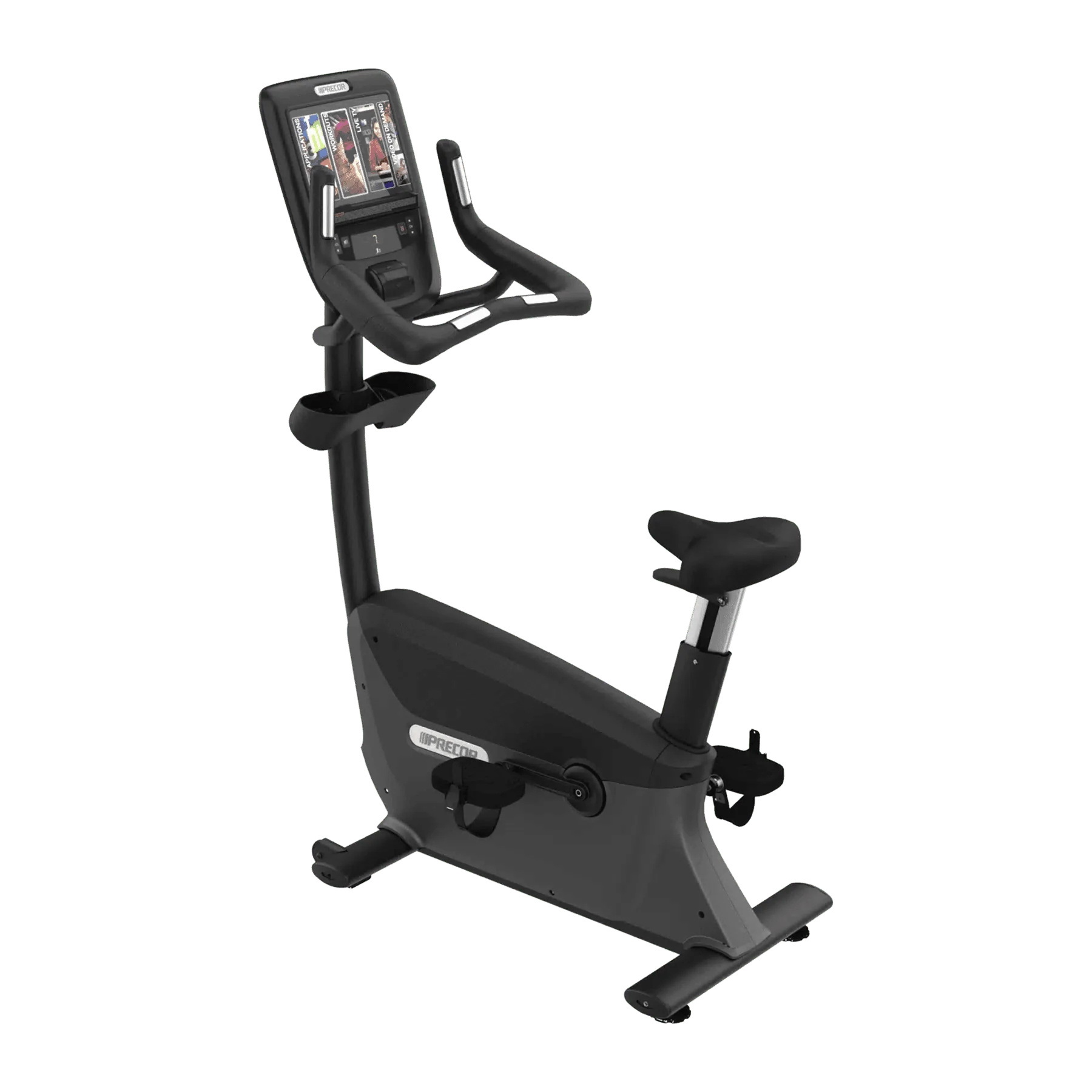

The Precor UBK 865 upright bike features custom-designed handlebars with integrated touch heart rate for maximum comfort and efficient workout experience. One-handed seat adjustment on or off the bike, redesigned saddle for riding comfort and improved knee over pedal spindle (KOPS) geometry for efficient pedaling mean a smooth, comfortable workout.
Easy of Assembly & Service
The easy to remove shroud ensures easy access to the belt-drive system for maintenance and servicing without removing the pedals or crank.
Innovation for Superior Riding Comfort
Over-molded handle bars add comfort and durability while offering heart rate contacts and three ergonomic riding positions: upright, cruising and road. The simple seat adjustment allows the user to change the position of the seat with one hand, either on or off the bike.

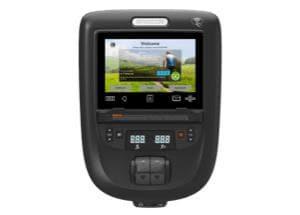

860 Line Touchscreen Console
The 860 Line console provides a personalized viewing experience, remarkable TV clarity, and internet options that exercisers crave, all in a 10" screen. With the ability to "favorite" selections for the future, exercisers can customize their workout experience based on what is important to them.
18 (level 1 at 20 RPM)
750 (level 25 at 150 RPM)
Two-Stage Drive System
The two-stage drive system yields a smooth, comfortable, quiet operation with a lower start-up resistance and consistent resistance progression.
3-piece premium crank assembly tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal.
3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike.
Belt drive for smoother, quieter operation and reduced maintenance.
Resistance Level Total Distance, Distance Remaining Total Calories Burned, Calories/Min, Calories/Hr, Mets, Watts Time Elapsed, Time Remaining, Time in Zone, Segment Time RPM, Speed, Average Speed Heart Rate, Average Heart Rate, Max Heart Rate
Lose Weight 4-3 Interval Aerobic Fat Burner Heart Rate Zone Be Fit Manual 1-1 Interval 2-1 Interval 4-1 Interval Rolling Hills Mountain Peaks Hill Climb Heart Rate Zone Push Performance 1-4 Interval 1-2 Interval 5 K Heart Rate Zone Watts Target
Heart Rate Monitoring
Integrated telemetry heart rate reads heart rate from a user's HR chest strap.
Heart Rate Sensor Advisory
The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions.
ISO/ISEC 14443A MIFARE, NFC P2P and R/W modes (future)
Ability to set club parameters, e.g. limit exercise time, set default language and pause time.
802.11 a/b/g/n, 2.4 GHz MIMO and 5 GHz multiple antenna operation
Bluetooth 4.0 (Bluetooth 2.0 plus BTLE) (future)
User Height Range
58 to 78 inches / 147 to 198 cm
Maximum User Weight
350 lbs / 159 kg
19 / 7.5
Standard Frame Colors
Gloss Metallic Silver Black Pearl
Shipping Dimensions and Weight
51.5 inches / 131 cm
28 inches / 71 cm
54 inches / 137 cm
178 lbs / 81 kg
Equipment Dimensions and Weight
Height with PVS
48 inches / 122 cm
21 inches / 53 cm
62 inches / 157 cm
Machine Weight (base equipment)
169 lbs / 77 kg
Personal Viewing Screen (PVS)
Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks.
Dual accessories holder for water bottle, portable music, keys, etc.
Universal Seat Mount
Two-step powder-coating process applies rust-resistant undercoat and cosmetic topcoat to steel frame.
The bottom bracket assembly uses a hardened steel shaft with deep-groove sealed precision ball bearings designed for smooth operation and exceptional service life.

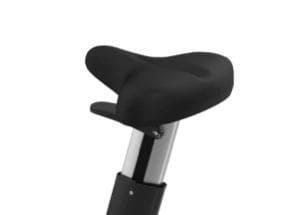

Improved, ergonomic saddle design with comfort groove is injection-molded polyurethan with custom density for optimum riding comfort. 10.5 inches (27 cm) width quickly tapers to a narrow nose for improved riding comfort. Optional universal seat post allows easy installation of different saddle types.
New, convenient seat adjustment allows the user to easily change the seat to their desired height, either on or off the bike.

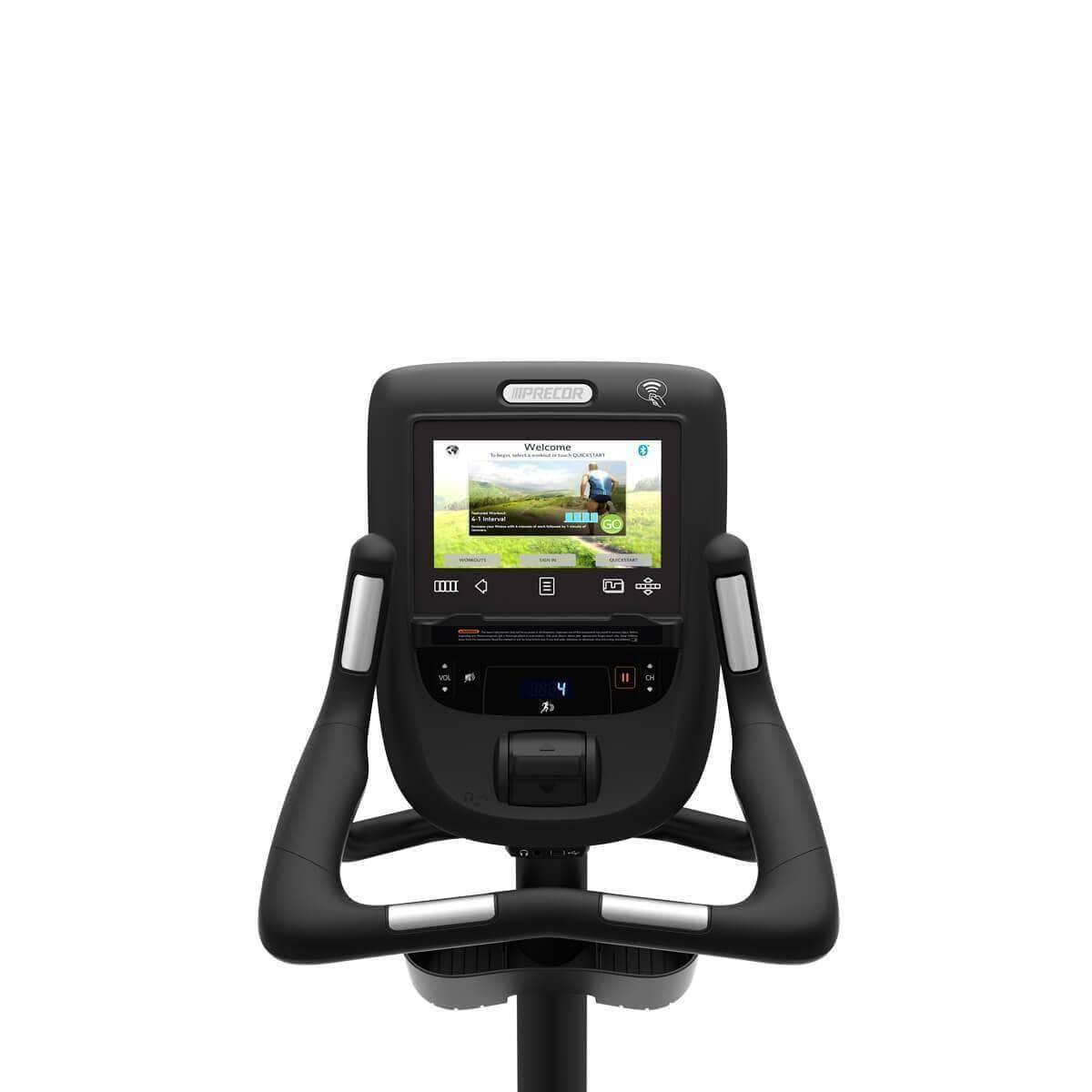

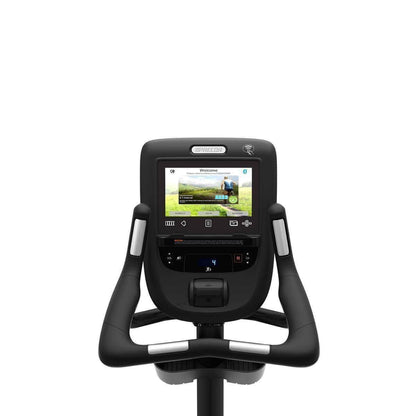

A new over-molded handlebar design offers the user three comfortable riding positions-upright, cruising, and road. In the road position, the ergonomic-shaped handlebars position the wrists in a natural, neutral position. The wide width of the handlebars provide stability and comfort along the entire forearm. The overall width of the handlebars is similar to indoor cycling bikes, which is narrower than most stationary bikes. This places the user in better ergonomic position with the forearms more directly under the shoulders. In the cruising position, the wide handlebar is more comfortable on the user's hands. Touch heart rate is integrated in the upright and road-race positions
For double the convenience, dual-sided pedals allow the rider to use the pedals with or without the integrated pedal strap. The extra wide pedal comfortably accommodates feet of all sizes, which allows proper pedaling form with the foot directly over the user's knee.
To achieve proper pedaling biomechanics, the seat post angle and seat post offset from the crank is key to aide in efficient pedaling and reduced shear force on the knee. The seat post angle is 74 degrees with a 5 inch (13 cm) offset from the crank axle. This places the forward knee directly over the ball of the foot (or pedal spindle) when the pedals are in a horizontal position.
